PyRTL

PyRTL is a Python library for register-transfer-level hardware design and simulation. Get started with:

$ pip install pyrtl

PyRTL Features

PyRTL provides a collection of classes for Pythonic register-transfer level design, simulation, tracing, and testing suitable for teaching and research. Simplicity, usability, clarity, and extensibility are overarching goals, rather than performance or optimization. Features include:

• Elaboration-through-execution, meaning all of Python can be used, including introspection.

• Design, instantiate, and simulate all in one file, and without leaving Python.

• Export to, or import from, common HDLs (BLIF-in, Verilog-out currently supported).

• Examine execution with waveforms in a terminal or export to .vcd as projects scale.

• Elaboration, synthesis, and basic optimizations all included.

• Small and well-defined internal core structure means writing new transforms is easier.

• Batteries included means many useful components are already available.

New in PyRTL 1.0.0

The new pyrtl.rtllib.float module generates floating point hardware!

Simple PyRTL Examples

Here are some simple examples of PyRTL in action. These examples implement the same functionality as those highlighted in the wonderful related work Chisel, which in turn allows us to see the stylistic differences between the approaches.

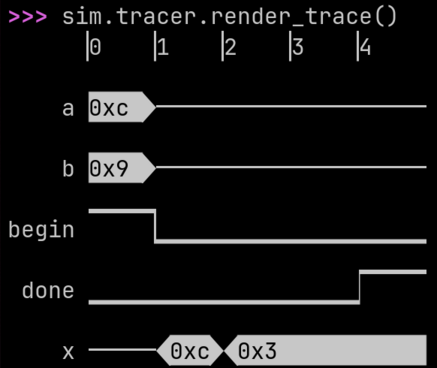

GCD

A greatest common denominator calculator: gcd generates a sequential circuit that saves inputs a and b when begin goes high, and then, while begin is low, calculates the GCD with Euclid’s algorithm. The function returns two WireVectors, one which holds the GCD when the computation is done, and the other which is a boolean done signal.

The code below provides everything needed to instantiate, simulate, and visualize the resulting design.

import pyrtl


def gcd(
    a: pyrtl.WireVector, b: pyrtl.WireVector, begin: pyrtl.WireVector
) -> tuple[pyrtl.WireVector, pyrtl.WireVector]:
    x = pyrtl.Register(bitwidth=a.bitwidth)
    y = pyrtl.Register(bitwidth=b.bitwidth)
    done = pyrtl.WireVector(bitwidth=1)

    with pyrtl.conditional_assignment:
        with begin:
            x.next |= a
            y.next |= b
        with x > y:
            x.next |= x - y
        with y > x:
            y.next |= y - x
        with pyrtl.otherwise:
            done |= True
    return x, done


a = pyrtl.Input(name="a", bitwidth=8)
b = pyrtl.Input(name="b", bitwidth=8)
begin = pyrtl.Input(name="begin", bitwidth=1)

x = pyrtl.Output(name="x", bitwidth=8)
done = pyrtl.Output(name="done", bitwidth=1)

x_, done_ = gcd(a, b, begin)
x <<= x_
done <<= done_

sim = pyrtl.Simulation()
sim.step({"a": 12, "b": 9, "begin": True})
while not sim.inspect("done"):
    sim.step({"a": 0, "b": 0, "begin": False})
sim.tracer.render_trace()

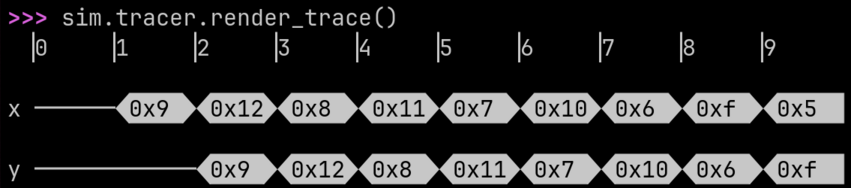

FIR

A finite impulse response filter: fir generates a sequential circuit that accepts inputs x and a list of coefficients bs. From the Wikipedia FIR description, the list zs is the registers required to implement the delay. fir returns an output y which is the resulting sum of products and is valid every cycle (since the design is naturally fully pipelined).

import pyrtl


def fir(x: pyrtl.WireVector, bs: list[int]):
    rwidth = x.bitwidth  # Bitwidth of the registers.
    ntaps = len(bs)  # Number of coefficients.

    zs = [x] + [pyrtl.Register(rwidth) for _ in range(ntaps - 1)]
    for i in range(1, ntaps):
        zs[i].next <<= zs[i - 1]

    # Produce the final sum of products.
    return sum(z * b for z, b in zip(zs, bs, strict=True))


x = pyrtl.Input(name="x", bitwidth=8)
y = pyrtl.Output(name="y", bitwidth=8)
y <<= fir(x, bs=[0, 1])

sim = pyrtl.Simulation()
sim.step_multiple({"x": [0, 9, 18, 8, 17, 7, 16, 6, 15, 5]})
sim.tracer.render_trace()

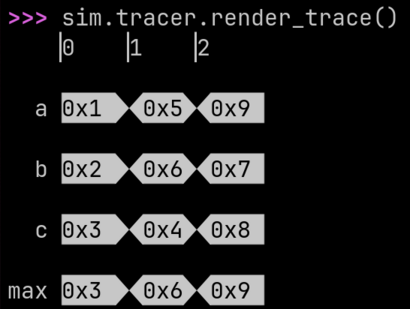

MaxN

max_n generates hardware that identifies the largest of N input values. This example makes use of Python’s notation for handling multiple inputs by packing them into a list. It also demonstrates that the full power of Python is available to you in PyRTL, including functional tools like reduce(), which is used to chain together multiple max_2 elements into a bigger max_n.

from functools import reduce

import pyrtl


def max_n(*inputs):
    def max_2(x, y):
        return pyrtl.select(x > y, x, y)

    return reduce(max_2, inputs)


a = pyrtl.Input(name="a", bitwidth=8)
b = pyrtl.Input(name="b", bitwidth=8)
c = pyrtl.Input(name="c", bitwidth=8)
max = pyrtl.Output(name="max", bitwidth=8)

max <<= max_n(a, b, c)

sim = pyrtl.Simulation()
sim.step_multiple({"a": [1, 5, 9], "b": [2, 6, 7], "c": [3, 4, 8]})
sim.tracer.render_trace()

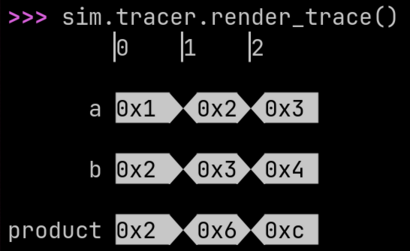

Mul

mul generates a small 4 x 4 multiplier with a simple ROM lookup. The first two lines simply check that the inputs are each 4-bits wide. romdata is a Python function that calculates the values we want stored in the ROM, as a function of the ROM address. RomBlock automatically initializes the ROM with values computed by romdata. The generated hardware simply concats the two 4-bit inputs into an 8-bit ROM address and returns the value stored in the ROM at that address.

import pyrtl


def mul(x: pyrtl.WireVector, y: pyrtl.WireVector) -> pyrtl.WireVector:
    assert x.bitwidth == 4
    assert y.bitwidth == 4

    def romdata(addr: int) -> int:
        return (addr >> 4) * (addr & 0xF)

    tbl = pyrtl.RomBlock(bitwidth=8, addrwidth=8, romdata=romdata)
    return tbl[pyrtl.concat(x, y)]


a = pyrtl.Input(name="a", bitwidth=4)
b = pyrtl.Input(name="b", bitwidth=4)
product = pyrtl.Output(name="product", bitwidth=8)

product <<= mul(a, b)

sim = pyrtl.Simulation()
sim.step_multiple({"a": [1, 2, 3], "b": [2, 3, 4]})
sim.tracer.render_trace()

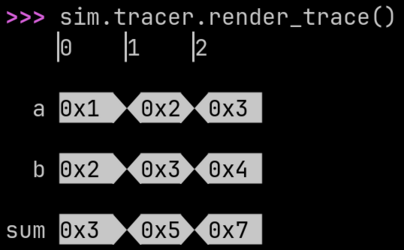

Adder

The classic ripple-carry adder: adder generates a ripple carry adder of arbitrary length including both carry in and carry out. The full adder (fa) takes 1-bit inputs and produces 1-bit outputs. We iteratively create full adders and link the carry in of each new full adder to the carry out of the last full adder. adder’s sum is a Python list that keeps track of the wires carrying the sum bits. The final full_sum is produced by concatenating the wires in sum with concat_list().

import pyrtl


def fa(
    x: pyrtl.WireVector, y: pyrtl.WireVector, cin: pyrtl.WireVector
) -> tuple[pyrtl.WireVector, pyrtl.WireVector]:
    """Full adder."""
    sum = x ^ y ^ cin
    cout = x & y | y & cin | x & cin
    return sum, cout


def adder(
    a: pyrtl.WireVector, b: pyrtl.WireVector, cin: pyrtl.WireVector
) -> tuple[pyrtl.WireVector, pyrtl.WireVector]:
    """n-bit ripple carry adder with carry in and carry out."""
    a, b = pyrtl.match_bitwidth(a, b)

    sum = [None] * a.bitwidth
    for i in range(a.bitwidth):
        sum[i], cout = fa(a[i], b[i], cin)
        cin = cout

    full_sum = pyrtl.concat_list(sum)
    return full_sum, cout


a = pyrtl.Input(name="a", bitwidth=4)
b = pyrtl.Input(name="b", bitwidth=4)
sum = pyrtl.Output(name="sum", bitwidth=8)

sum_, cout_ = adder(a, b, pyrtl.Const(0))
sum <<= sum_

sim = pyrtl.Simulation()
sim.step_multiple({"a": [1, 2, 3], "b": [2, 3, 4]})
sim.tracer.render_trace()

The 10,000 Foot Overview

At a high level, PyRTL builds hardware that you explicitly define. If you are looking for a tool to take your random Python code and turn it into hardware, you will have to look elsewhere: this is not HLS. Instead, PyRTL helps you concisely and precisely describe a digital hardware structure, which you already have worked out in detail, in Python.

PyRTL restricts you to a set of reasonable digital designs practices: the clock and resets are implicit, block memories are synchronous by default, there are no “undriven” states, and un-registered feedback loops are not allowed. Instead of worrying about these “analog-ish” tricks that are horrible ideas in modern processes anyways, PyRTL lets you treat hardware design like a software problem: build recursive hardware, write introspective containers, and have fun building digital designs again!

To the user it provides a set of Python classes that allow them to Pythonically express their hardware designs. For example, with WireVector you get a structure that acts very much like a Python list of 1-bit wires, so mywire[:-1] selects everything except the most-significant-bit. Of course you can add, subtract, and multiply these WireVectors, or concat() multiple bit-vectors end-to-end as well.

You can even put WireVectors in Python collections and process them in bulk. For example, if x is a list of WireVectors, and you want to multiply each of them by 2 and sum them into a WireVector y:

y = sum([elem * 2 for elem in x])

Hardware comprehensions are surprisingly useful. We’ll cover an example in more detail below, but if you just want to play around with PyRTL try Jupyter Notebooks on any of our examples on MyBinder.

Hello N-bit Ripple-Carry Adder!

While adders are a builtin primitive for PyRTL, most people doing RTL are familiar with the idea of a Ripple-Carry Adder and so it is useful to see how you might express one in PyRTL. Rather than the typical Verilog introduction to fixed 4-bit adders, let’s go ahead and build an arbitrary bitwidth adder.

import pyrtl


def one_bit_add(
    a: pyrtl.WireVector, b: pyrtl.WireVector, carry_in: pyrtl.WireVector | int
) -> tuple[pyrtl.WireVector, pyrtl.WireVector]:
    assert len(a) == len(b) == 1  # `len` returns the bitwidth.
    sum = a ^ b ^ carry_in  # WireVector operators build the hardware.
    carry_out = a & b | a & carry_in | b & carry_in
    return sum, carry_out


def ripple_add(
    a: pyrtl.WireVector, b: pyrtl.WireVector, carry_in: pyrtl.WireVector | int = 0
) -> tuple[pyrtl.WireVector, pyrtl.WireVector]:
    a, b = pyrtl.match_bitwidth(a, b)
    if len(a) == 1:
        sumbits, carry_out = one_bit_add(a, b, carry_in)
    else:
        lsbit, ripplecarry = one_bit_add(a[0], b[0], carry_in)
        msbits, carry_out = ripple_add(a[1:], b[1:], ripplecarry)
        sumbits = pyrtl.concat(msbits, lsbit)
    return sumbits, carry_out

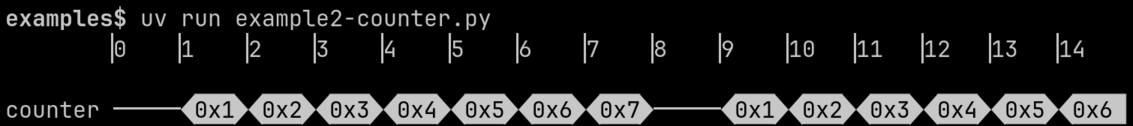

# Instantiate an adder into a 3-bit counter.
counter = pyrtl.Register(name="counter", bitwidth=3)
sum, carry_out = ripple_add(counter, pyrtl.Const(1))
counter.next <<= sum

# Simulate the instantiated design for 15 cycles.
sim = pyrtl.Simulation()
sim.step_multiple(nsteps=15)
sim.tracer.render_trace()

The code above includes an adder generator with Python-style slices on wires (ripple_add), an instantiation of a Register (used as a counter with ripple_add), and all the code needed to simulate the design, generate a waveform, and render it to the terminal. Example 2’s comments describe this code in much more detail. When you run it, it should look like this (you can see the counter going from 0 to 7 and repeating):

A Few Gotchas

While Python is an amazing language, DSLs in Python are always forced to make a few compromises which can sometimes catch users in some unexpected ways. Watch out for these “somewhat surprising features”:

• PyRTL never uses any of the “in-place arithmetic assignments” such as += or &= in the traditional ways. Instead only <<= and |= are defined and they are used for wire-assignment and conditional-wire-assignment respectively (more on both of these in Example 3).

  If you declare:

  x = WireVector(bitwidth=3)


  and:

  y = WireVector(bitwidth=5)


  how do you assign x the value of y + 1? If you do x = y + 1 that will replace the old definition of x entirely. Instead you need to write x <<= y + 1 which you can read as “x gets its value from y + 1”.

• The example above also shows off another aspect of PyRTL. The bitwidth of y is 5. The bitwidth of y + 1 is actually 6 (PyRTL infers this automatically). But then when you assign x <<= y + 1 you are taking a 6-bit value and assigning it to a 3-bit value. This is completely legal, and the value will be truncated, so only the least significant bits will be assigned. Mind your bitwidths!

• PyRTL’s WireVectors overloads many useful operators, including == and < which evaluate to a new WireVector with bitwidth 1 to hold the result of the comparison. The bitwise operators &, |, ~ and ^ are also defined (however logic operations such as and and not are not defined). A really tricky gotcha happens when you start combining these operators. Consider:

  do_it = ready & state == 3


  In Python, the bitwise & operator has higher precedence than ==, thus Python parses this as:

  do_it = (ready & state) == 3


  which is probably not what you intended! Make sure to use parentheses when using comparisons with logic operations to be clear:

  do_it = ready & (state == 3)


• In PyRTL, all WireVectors are unsigned, so WireVector comparisons with < are unsigned comparisons. You must explicitly call functions like signed_lt() for signed comparisons. Similarly, if you pass a WireVector to a function that requires more bits that you have provided, the WireVector will be zero-extended by default. You must explicitly call sign_extended() to sign-extend. Example 1.1 provides more examples of signed arithmetic in PyRTL.

Related Projects

Amaranth (previously nMigen)

Another Python hardware project providing an open-source toolchain that has a lot of wonderful stuff for working with FPGAs in particular. It has support for evaluation board definitions, a System-on-Chip toolkit, and more. I think it has a similar philosophy of trying to be easy to learn and use and simplify the design of complex hardware with reusable components. Amaranth (at the time of writing) has much better support on the back end for a variety of real devices and low level stuff like managing clock domains, but I think PyRTL provides some value in getting going right in the command line and how it handles memories etc. I would be eager to see the power of these tools combined in some way!

Chisel

A project with similar goals to PyRTL but based on Scala instead of Python. Scala provides some very helpful embedded language features and a rich type system. Chisel is (like PyRTL) a elaborate-through-execution hardware design language. With support for signed types, named hierarchies of wires useful for hardware protocols, and a neat control structure call when that inspired our conditional_assignment contexts, Chisel is a powerful tool used in some great research projects including RISC-V. Unlike Chisel, PyRTL has concentrated on a simple to use and complete tool chain which is useful for instructional projects, and provides a clearly defined and relatively easy-to-manipulate intermediate structure in the class Block which allows rapid prototyping of hardware analysis routines which can then be co-designed with the architecture.

SpinalHDL

A different approach to HDL in Scala, very much aligned with the way PyRTL is built. Invented independently, it is neat to see the convergent evolution which, I think, points to something deeper about hardware design. It has a lot of support and really well thought out structures.

MyHDL

Another neat Python hardware project built around generators and decorators. The semantics of this embedded language are close to Verilog and unlike PyRTL, MyHDL allows asynchronous logic and higher level modeling. Much like Verilog, only a structural “convertible subset” of the language can be automatically synthesized into real hardware. PyRTL requires all logic to be both synchronous and synthesizable which avoids a common trap for beginners, it elaborates the design during execution allowing the full power of Python in describing recursive or complex hardware structures, and it allows for hardware synthesis, simulation, test bench creation, and optimization all in the same framework.

Yosys

An open source tool for Verilog RTL synthesis. It supports a huge subset of Verilog-2005 and provides a basic set of synthesis algorithms. The goals of this tool are quite different from PyRTL, but the two play together very nicely. PyRTL’s output_to_verilog() produces Verilog that can be synthesized with Yosys. Similarly, PyRTL’s input_from_verilog() uses Yosys to synthesize complex Verilog designs to a simple library of gates, before importing into PyRTL.

PyMTL3 (a.k.a. Mamba)

A beta stage “open-source Python-based hardware generation, simulation, and verification framework with multi-level hardware modeling support”. One of the neat things about this project is that they are trying to allow simulation, modeling, and verification at multiple different levels of the design from the functional level, the cycle-close level, and down to the register-transfer level (where PyRTL really is built to play). Like MyHDL they do some meta-programming tricks like parsing the Python AST to allow executable software descriptions to be (under certain restrictions, sort of like Verilog) automatically converted into implementable hardware. PyRTL, on the other hand, is about providing a limited and composable set of data structures for specifying an RTL implementation, thus avoiding the distinction between synthesizable and non-synthesizable code (the execution is the elaboration step).

ClaSH

An embedded hardware description language in Haskell. Like PyRTL it provides an approach suitable for both combinational and synchronous sequential circuits and transforms these high-level descriptions to low-level synthesizable Verilog HDL. Unlike PyRTL, designs are statically typed (like VHDL), yet with a very high degree of type inference, enabling both safe and fast prototying using concise descriptions. If you like functional programming and hardware also check out Lava.
